Spray Booth Filters

Inlet, Exhaust, Pre-filters and Ceiling Filters for Spraybooth/Ovens

Inlet Filters/Pre-Filters

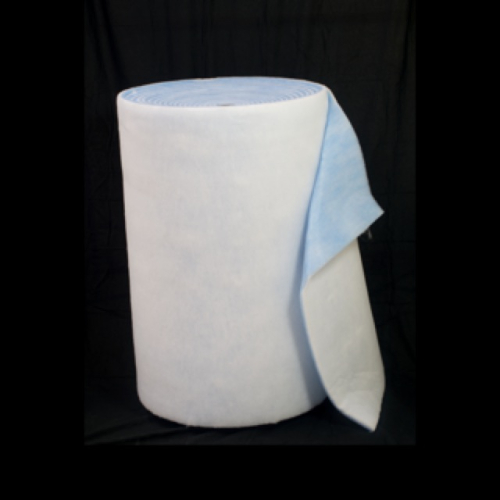

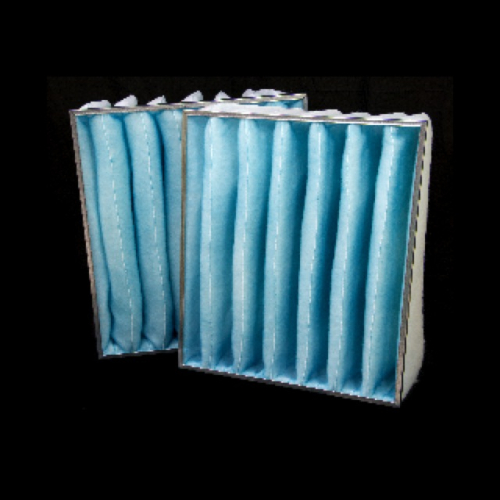

We supply a wide range of spray booth filters either on a roll or cut pads to size. Bag pre-filters are typically used in the input power group chambers in spray booths.

Pre-filters can be purchased online in our shop.

Eurotecno Spray Booths Ltd.
Pre-Filter Pad 2100 x 770mm 290 Media Blue/White
£8.90 Exc. VAT
Eurotecno Spray Booths Ltd.
Pre Filter Roll – 290 Media – 1m Wide
Price range: £47.00 through £60.00 Exc. VAT Sale!
Eurotecno Spray Booths Ltd.
Pre Filter Pad | 290 Media | Cut to Size
£5.40 Exc. VAT

Previous Next

1 2 3

Pre-Filter Specifications

Av. Arrestance	93%
Initial Arrestance	87%
Air Volume	5,400 m³/hr/m²
Initial Resistance	37 Pa
Final Recommended Resistance	250 Pa
Maximum Operating Humidity	100%
Dust Holding Capacity	635 g/m²
Filter Depth	20 mm
Classification	Eurovent G4
Flame Resistance	DIN 53437 F1/K1 Airbus ATS-1000.001

Exhaust Filters/Paint Stop Spray Booth Filters

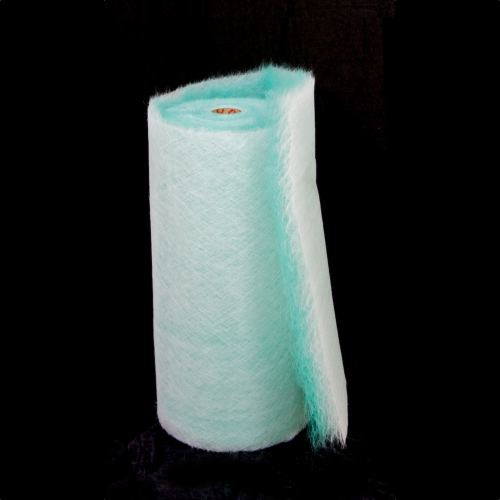

2″ and 4″ paint stop filters are available as pre-cut pads or on a roll. The rolls can also be cut to a specific custom with. Please call us for more information on any custom sizes of filters required.

Exhaust/Extract filters are glass media and are the first stage in the collection of paint overspray.

Paint Stop Filters are available in our shop.

Previous Next

1 2

Paint Stop Spray Booth Filter Specifications

	2″ PAINT STOP	4″ PAINT STOP
Average paint arrestance	95-98 %	98-99 %
Air volume	2500-6300 m3/hr/m2	2500-6300 m3/hr/m2
Initial resistance	7-40 Pa	14-60 Pa
Paint holding capacity at 80 Pa and 0.7 m/s	3500-4700 g/m2	3900-5900 g/m2
Filter depth (nominal)	50-65 mm	95-110 m
Flame resistance	DIN 53438 F1/K1	DIN 53438 F1/K1

Ceiling Filters

Ceiling filters are available on a roll or as pre-cut pads.

The high performance fine filters are manufactured entirely from bonded fibres. The fibres are build up progressively from the base to form a high density matrix.

The media construction ensures high initial arrestance and exceptional dust holding capacity at low pressure resistance, creating the ultimate combination of service life, performance and economy. A special adhesive agent is applied to the fibres during manufacture in order to enhance dust holding capacity, optimising arrestance and provide complete protection against mitigation caused by excess vibration. The addition of an open mesh scrim provides even greater stability and prevents dust being released when the filters are soiled.

Ceiling Filter Specifications

Average arrestance	98%
“Average efficiency ”	52%
Air volume	2700 m³/hr/m²
Initial resistance	65 Pa
Final recommended resistance	450 Pa
Temperature resistance	100 °C
Maximum operating humidity	100 % RH
Dust holding capacity	385 g/m2
Filter depth	20 mm
Classification	Eurovent EN779 2012 M5
Flame resistance	DIN 53438 F1/K1

Spray Booth Filters

Inlet Filters/Pre-Filters

Pre-Filter Pad 2100 x 770mm 290 Media Blue/White

Pre Filter Roll – 290 Media – 1m Wide

Pre Filter Pad | 290 Media | Cut to Size

Pre-Filter Bag for Air Scrubber AS3000

Pre-Filter Pad SET (4 off 1085 off 440mm + 2 off 1085 x 880mm) 290 Media Blue/White

Set of 6 Filter Pads for Air Scrubber AS3000

Pre-Filter Bag – 1170mm x 630mm x 170mm deep, 10 pockets

Pre-Filter Bag – 815mm x 460mm x 500mm deep

Pre-Filter Specifications

Exhaust Filters/Paint Stop Spray Booth Filters

Paint Stop Filter Pad | Cut to Size

Paint Stop Filter Pad 2100 x 770mm

2″ Paint Stop Filter Roll 1m wide

2″ Paint Stop Filter Roll 0.9m wide

Paint Stop Filter Pad Set ( 5 pads 8000mm x 630mm 2″ Paint Stop)

Paint Stop Filter Pad SET (4 x 1085 off 440mm + 2 off 1085 x 880mm)

Paint Stop Spray Booth Filter Specifications

Ceiling Filters

Ceiling Filter Pad | 600G Media | Cut to size

Ceiling Filter Roll – 560G – 1m wide

Ceiling Filter Specifications
